Corian Worktops supplied and fitted, Newbury, Berkshire

Corian® is non-porous and very hygienic. Its smooth impenetrable surface means bacteria and mould have nowhere to take root.

Endlessly adaptable, Corian® Solid Surface is thermoformable and can be heated and moulded into organic or linear shapes seamlessly covering surfaces of any size.

Corian® Solid Surface helps keep germs and viruses from hiding in cracks and crevices – making it easy to clean and disinfect.

Corian® Solid Surface has a unique feeling of a smooth and sensual touch, that looks and feels warm and beautiful.

Corian® stays looking good and resists impact from nicks and cuts that occur with daily wear and tear.

Some Corian® colours will allow diffused light transmission, creating stunning visual effects when backlit.

Corian® surfaces are renewable and inherently environmentally friendly. Even heavy stains and scratches can be erased without a trace simply by rubbing with household cleaner.

As a low-VOC material, Corian® Solid Surface is free from dangerous chemicals and supports better indoor air quality.

Colour-coordinated Joint Adhesive bonds Corian® Solid Surface with inconspicuous seams. This results in a smooth, seamless surface allowing large designs fashioned from a single element.

A selection of colours contain at least 6% and as much as 14% of recycled material.

The original solid surface material, Corian®, was specifically designed as a work surface when it was first introduced in 1967. With its balance of beauty and performance, Corian® worktops lend themselves to imaginative uses, innovative designs and enduring work surface applications. Corian® worktops are warm to the touch, have seamless joints, excellent impact, stain and water resistance. Corian® work surfaces come with a 10 year Manufacturer’s Limited Warranty, backed by the DuPont™ Quality Network.

• 10 year Limited Manufacturer’s Warranty backed by DuPont™
• Introduced in 1967 it is the original solid surface material
• Worktops available in a wide selection of colours
• Solid, homogeneous and non-porous
• Worktops cannot delaminate or rot under pressure
• Difficult to stain
• Worktops are easy to clean &maintain
• Warm & inviting to the touch
• Worktops have excellent impact resistance
• Inconspicuous, unobtrusive and seamless joints
• Infinite design possibilities

The edge detail can completely change the appearance of a worktop, although the more complicated the detail, the more the cost will be as a result of the additional work that has to be done, as this is very skilled and labour intensive.

Deeper Downturns

The very latest in manufacturing technology now enables us to offer a Corian® worktop with a downturn of 60mm -100mm. Please contact our sales office for further details.

* Extra charge added for these edge details

End Panels

Shoulder Housing Joint

The end panels will be of a shoulder housing joint configuration to produce a flush fitting appearance. The height of the end panel will be manufactured with a 10mm excess, allowing it to be scribed on site.

Corian Upstands are manufactured along with the worktop to provide a seamless join between the two.

On installation, we endeavour to keep as close as possible to the line of the wall, but due to natural flexing of structures over time, there may be gaps between 2mm and 4mm at the back of your worktop. Such gaps may be more prominent in older buildings, and for this reason we recommend that plastering or tiling should be ideally completed after the worksurface installation.

We have 3 variants of upstand typically available with Corian worktops; Square, 10mm Coved and 50mm Coved.

(Above: Square, 10mm Coved and 50mm Coved Corian Upstands, respectively.)

The compulsory method for installing square hobs is the high-strength cutout patented by Dupont™. Hobs must be integrated into a Corian® worksurface, according to specified guidelines.

When deciding on the layout of your cutouts, please bear the following in mind:-

• A minimum of 120mm is required between two hob cutouts
• A minimum of 50mm from the cutout to the front edge is required
• A minimum of 50mm is required between sink cutouts.

Please specify the preferred undermounting of stainless steel sinks.

Silicone sealant my be rendered ineffective when plumbing the sink in, it is important that the sink is re-sealed by the plumber, or the 12 months guarantee will be invalid.

* Type A, B & C have a 1 – 5mm gradient
† Type D, E are flat with 3mm flat
†† Type F is flat with a 3mm recess

A small amount of standing water will be retained in drainer grooves, after the majority of the water has drained away, this should be wiped clear to avoid water residue marking the worksurface.

We supply stainless sinks which can be delivered and installed with our worktops ready for plumbing.

The Apollo Urban sink has a stainless steel base and is available in the colour of your choice to match or co-ordinate with your worksurface.

• The top edge detail will be bevel edge unless otherwise stated.
• Stainless steel bases can be susceptible to scratching.
• There can be a slight variation in colour between sink and worktop.
• The corner radius on Urban Sinks is 10mm.

Urban Sinks

In order to avoid any colour variance between the top and the bowl, we suggest a bevel or moulded edge if this is not specified we will use our discretion as to which detail will be used.

Includes drainer – please add cost of your Urban sink to cost of selected blank and advise position of the overflow when specifying an apollo urban sink. Urban sinks are not available in disclaimer colours

Mixa Sinks

Please advise position of overflow when specifying a Mixa sink.

PLEASE NOTE:

• We do not recommend the fitting of Waste Disposal Units in Mixa Sinks
• There is a longer lead time with Mixa Sinks, up to 6 weeks
• This is a small selection, please ask our sales office for more details
• All Mixa sinks are undermounted.
• Please denote on your drawings the location of waste and overflow.
• Stainless steel bases can be susceptible to scratching.

Corian Bowls, Available in Cameo White & Glacier White

± also available in Designer White

Trevino Bowls, Available in all Corian Colours

Corian Bowls, Available in Cameo White & Glacier White

Trevino® Bowls are manufactured using Corian® sheet, which may result in a slight variation of colour between the worktop and the sink, due to the material being thermoformed (heated and curved) to a tight radius. In order to avoid any colour variance between the top and the bowl, we suggest a bevel or moulded edge, if this is not specified, we will use our discretion as to which detail will be used. Please denote on your drawings the location of waste and overflow.

When we at Vogue supply a worktop, we include with every order our Care & Maintenance kit which includes everything you need to keep your worktop in first class condition. Follow the instructions within for a trouble free, great looking worktop.

Our detailed care & maintenance brochure can be downloaded online by clicking here.

For additional care kit supplies, please contact our sales team.

Introduction
Corian® is a solid surface material made from 1/3 acrylic resin and 2/3 mineral filler. It is used as a decorative material in a variety of applications, such as kitchens and bathrooms in both commercial and residential environments. Corian® is supplied in sheets which can then be fabricated into worktops, vanity tops, showers and cladding – which will offer versatility, functionality and durability.

Joints
Joints are inconspicuous and unobtrusive providing a seamless worksurface. Due to the level of pigment in the material, joints can be blended to insignificance.

Tolerance
Tolerance in Corian® is ±2mm

Thermal expansion
Due to thermal expansion Corian® can expand up to 1mm per metre. A gap of at least 3mm should be left at each end of the worktop when fitted and filled with decorators caulk. When Corian® is joined to other materials (such as glass, steel or wood) an elastic type of adhesive, for example polyurethane is required for expansion.

Overhangs and supports
Any overhang extending more than 300mm should be supported.

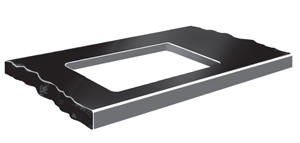

Hob and Sink Cutouts
The compulsory method for installing square hobs is the high-strength cutout patented by Dupont. Hobs must be integrated into a Corian® worksurface according to specified guidelines. Where a Corian® splash back or wall cladding is installed a gap of 50mm (minimum) is required behind an electric hob or 100mm (minimum) for a gas hob. A ‘breakfront’ may be necessary to accommodate this requirement. There must be a minimum of 50mm from the cutout to the front of the worktop and a gap of 120mm between heated cutouts.

A minimum of 50mm is required between two sink cutouts. Sink cutouts must be placed a minimum of 50mm from the worktop front edge. This is required under terms of the product warranty.

If a waste disposal unit is fitted to an undermounted sink after installation, additional support will be required, otherwise your warranty may be invalidated.

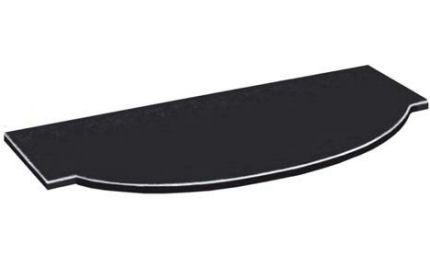

Internal Radius
The minimum internal radius is 80mm. Thermoforming to achieve a smaller radius can result in “bleaching” of the colour. To achieve a radius smaller than 80mm Corian® may have to be laminated, this may be visible in larger particled Corian® colours.

Upstands
There are two types of upstand available.

Square Corian® upstands are fixed on site, with Corian® glue or silicone.
Coved Corian® upstands are manufactured and fixed in the factory.
Due to manufacturing constraints there may be gaps as these upstands are manufactured in a straight line. This type of upstand is not suitable for walls where there are large variations in the wall profile. Plastering or tiling should ideally be completed after the worksurface installation.

Scratches
Corian® is scratch resistant but not scratch proof; the use of chopping boards and/or pastrymates is recommended. Dark, heavily pigmented colours will show scratches, dust and ordinary wear and tear more readily than lighter, textured forms.

Staining
While most tough stains can be buffed away, a level of care and maintenance is required, as spills should be cleaned up immediately.

Repairable
Corian® surfaces can easily be repaired. Using an ordinary abrasive cleaner and a scouring pad the surface may be fully restored to its original appearance.

Hygienic
Corian® is a non-porous material. Naturally resistant to mould, bacteria and mildew, Corian® surfaces have been certified by an independent laboratory as a hygienic material, according to the international norm DIN EN 1SO 846.

Veined Styles
Veined styles will necessitate mitred corner joints. Please ensure an allowance is made for the additional material that is required. Please also note that worktops cut from veined styles may not exactly replicate the positioning of the patterns displayed in showrooms, or on our sample images.

Infrequent Particles
Patterns with infrequent particles are produced at random, and expectations should be tempered, particularly for smaller sections such as upstands.

Disclaimer Colours
The following colours are NOT recommended for kitchen worktops, please discuss with Sheridan prior to fabrication:-

Bands A & B
Blueberry Ice, Glacier Ice, Lime Ice, Marine Blue, Medea, Mint Ice, Pewter, Sienna Brown, Strawberry Ice, Summer Sky, Clay.

Band C
Adobe, Bougainvillea, Claret, Ebony Black Graphic Blue, Grape Green, Hot, Lilac, Mandarin, Nocturne, Shale, Sun.

Band E
Anthracite, Blackberry Ice, Night Sky, Pompeii Red.

Band F
Cocoa Brown, Coffee Bean, Gravel, Blue Pebble, Beeswax.

Band G
Azure, Black Quartz, Cobalt, Ruby.

Band D*
Dawn Beige, Venaro White.

* Band D colours are veined and it should be noted that if worksurfaces manufactured from these colours are to be joined, the direction of veining will be random colour.

† Veining will necessitate mitred corner joints, please ensure an allowance is made for the additional material that is required.

Some Corian styles are produced with natural variations, which means actual results may vary.
